ZLTX Telemotive Industrial Remote Controls

Magnetek ZLTX bellybox remote control transmitter ZLTX bellybox-style remote control with joysticks, switches, and dials for crane and hoist operation

Magnetek ZLTX Radio Remote Controls

The Magnetek ZLTX is a rugged radio remote control for crane and hoist applications. Operators wear the compact transmitter at waist level for comfort and long shifts. It’s lightweight, sealed to IP66/NEMA 4, and built for demanding industrial environments. Below are the key specifications, features, and direct links to the official brochure and technical data sheet for the ZLTX. Get in touch with our team at Engineered Lifting Systems now for more information about our capabilities.

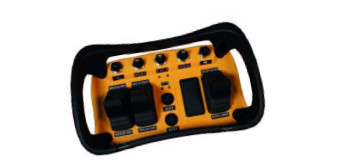

Magnetek ZLTX transmitter used for industrial crane and hoist operation

Key Specifications

  • Frequency: 433.050–439.600 MHz (license-free)
  • Operating range: up to 328 ft (100 m)
  • Operating temp: −13°F to 167°F (−25°C to 75°C)
  • Enclosure: NEMA 4 / IP66, glass-reinforced nylon
  • Power: four AA batteries (100+ hrs) or optional Ni-MH rechargeables
  • Weight: ~2.2 lbs with batteries

Features

  • 3-lever or 4-lever models with pushbuttons and switches
  • 2-, 3-, 5-speed, or stepless (analog) control options
  • Frequency agility to avoid interference
  • Zero-G sensor prevents unintended motion if dropped
  • Infrared setup and wireless pairing for fast configuration
  • Levers rated for 5+ million cycles

ZLTX Brochure

ZLTX Technical Data Sheet

Get ZLTX specs, pricing, or a demo from Engineered Lifting Systems, or learn more about our Magnetek crane controls.
